उत्पाद विवरण:
|
| प्रोडक्ट का नाम: | रोटरी टेबल एंटी स्लिप मैट | सामग्री: | पीयू |
|---|---|---|---|
| मोटाई: | 30 मिमी | आकार: | अनुकूलित |
| रंग: | पीला | आवेदन: | ड्रिलिंग रिग प्लेटफ़ॉर्म |

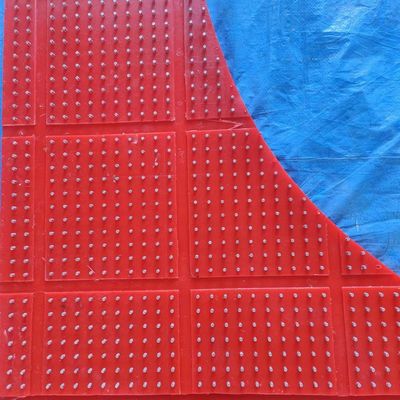

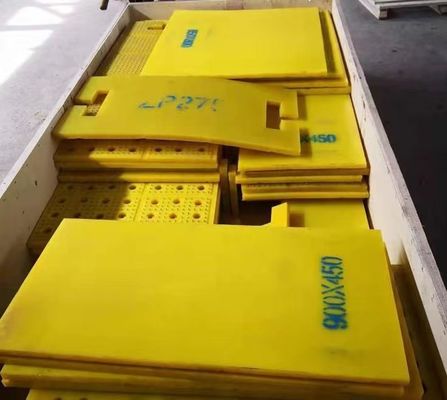

Rotary Table Anti Slip Mat For Drilling Rig Platform Thickness 30mm
Product Description
Drilling platform anti slip mat is a kind of rubber pad for drilling rig turntable and platform used in oil field,
mining and engineering construction. It is composed of steel nails and rubber layer, and is divided into ordinary
rubber and polyurethane rubber. This new type of anti slip mat has a more significant anti-slip protection effect.
Features:
1. Polyurethane rubber material, high strength, high wear resistance, oil resistance and aging resistance.

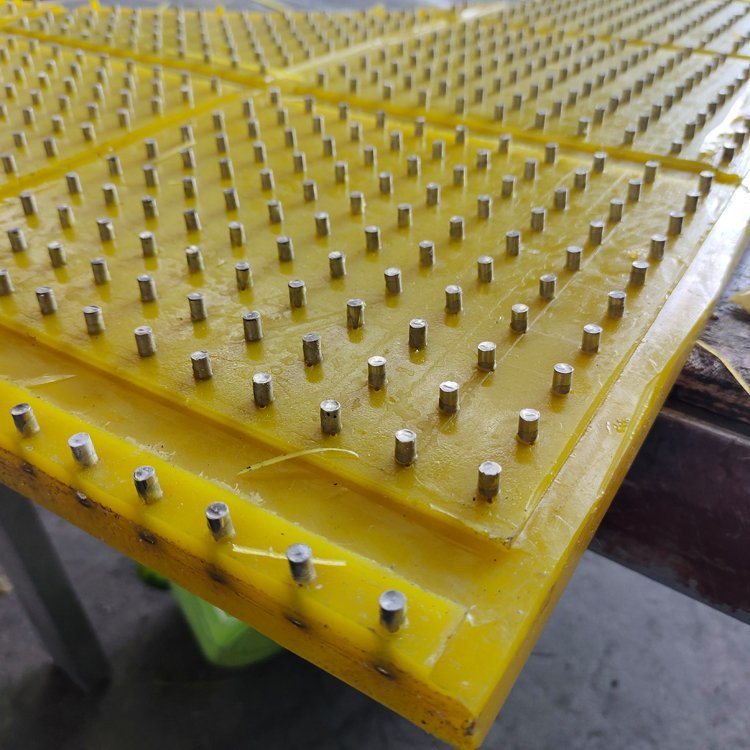

2. Protruding rivets or rubber particles can increase friction and play a non-slip effect.
3. The vertical and horizontal sewage groove design enables the effective discharge of oil and water.
4. Elastic rubber base material to protect the drill disc and rig and prolong its service life.
Specific parameter:
Standard ZP-175, ZP-275, ZP-375, ZP-205
Characteristics: Obviously anti-slip effection, with oil channel, can effectively discharge oil and mud, anti-slip pad appearance is beautiful with the color of yellow safety warning mark.
Technical Parameter
| Product Name | 1042 PU | |
|
Operation process |
NCO% Content | 4.2±0.2 |
| State of matter(20℃) | White waxy object | |
| 100g prepolymer MOCA dosage(g) | 12 | |
| Viscosity(85℃/MPa • S) | 1100 | |
|
Mixing temperature (℃)prepolymer/ MOCA |
80/ 120 | |
| Gel time(min) | 8- 12 | |
| Post-curing time(h/ 110℃) | 16-24 | |
|
Physical index |
Hardness (SHAO A) | 90±2 |
| 100% stress at definite elongation(MPa) | 8 | |
| 300% stress at definite elongation(MPa) | 22 | |
| Tensile strength(MPa) | 45 | |
| Elongation at break(%) | 520 | |
| Right-angled tearing strength(KN/m) | 95 | |
| Pants type tear strength(KN/m) | 32 | |
| Springback(%) | 28 | |
| Akron abrasion(cm³) | 0.02 |
